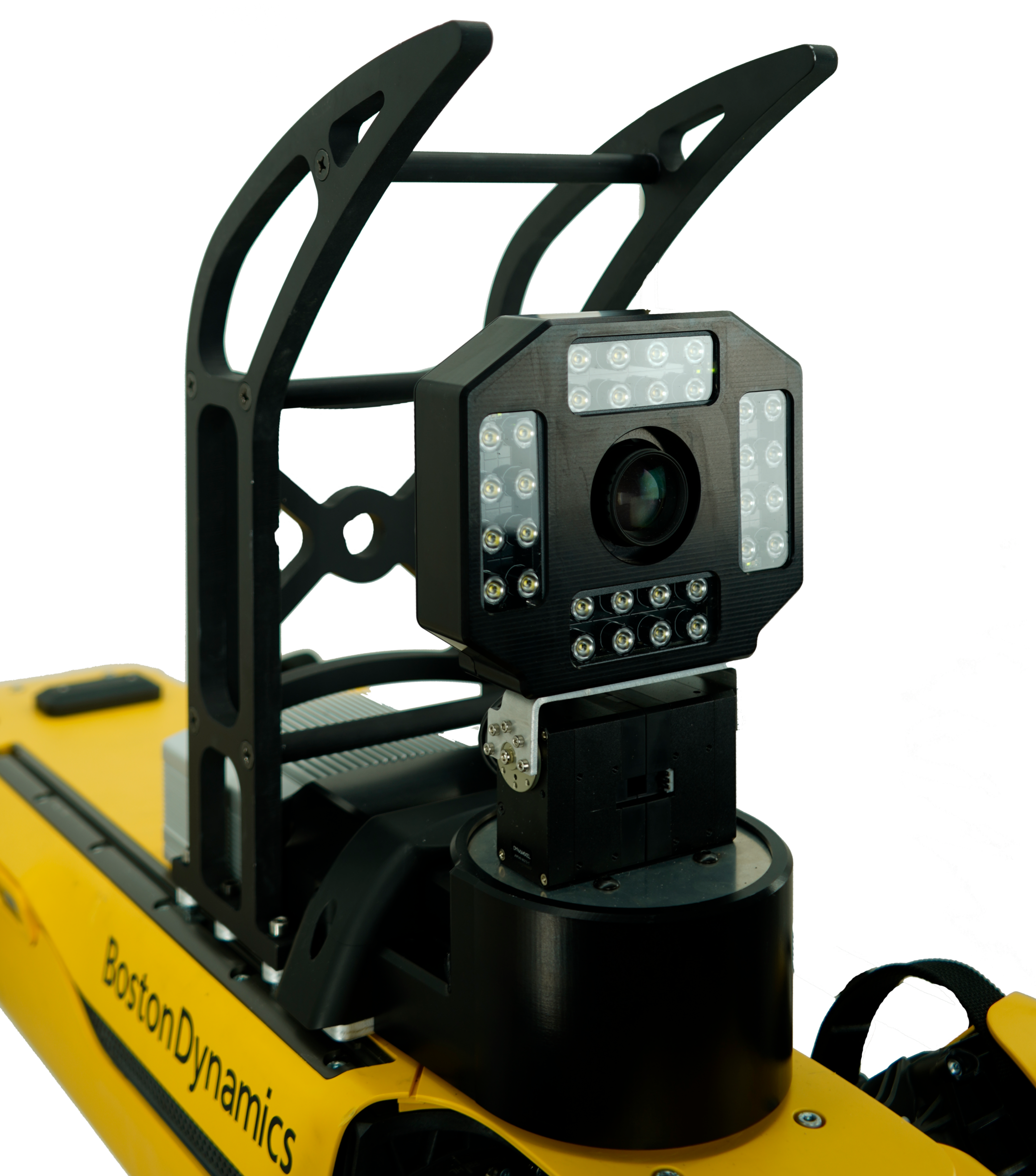

Iris ExplorerTM Spot® Payload

Combining the mobility of Boston Dynamics’ Spot® with the exceptional visibility of RDI Technologies’ Motion Amplification®, the Iris Explorer™ Spot Payload allows industrial customers to take next-generation vibration analysis right to the asset in even the most remote or hazardous environments.

Enterprise asset management programs now have a high volume, highly repeatable route-based vibration analysis solution with dynamic mobility and teleoperation capabilities. Measuring deflection, displacement, movement, and vibration not visible to the human eye autonomously, Iris Explorer minimizes risk, helps maintain compliance and increases asset ROI for improved asset reliability and performance.

CONTACT FOR PRICING

Flexible Routes

Accurate, Highly Repeatable

Know What to Work On

Maximum Visibility

ROUTE-BASED VIBRATION MONITORING

Capture data and explore without boundaries. Route-based operations become seamlessly automated and can be remotely monitored.

MOTION AMPLIFICATION TECHNOLOGY

Every pixel becomes a displacement sensor measuring vibration and motion, allowing you to see what the human eye cannot. ​

SAFETY, VISABILIITY, COST

Cover more assets in a fraction of the time, allowing for more asset coverage while acquiring more diverse and consistent data at reduced human risk.

DOESN’T REPLACE HUMANS, MAKES THEM MORE EFFICIENT, KNOWLEDGABLE

By reducing the time it takes to check safety-critical equipment, users can reinvest those resources toward maintaining production-critical equipment and performing other important tasks.

Features

  • ON DEMAND MODE

    Allows critical asset assessment or one-time data collection without having to create an auto walk mission for Spot®.

  • AUTONOMOUS MODE

    Users can recall previously programmed routes. Scheduling feature available through Boston Dynamics software features. Data measurements can be automatically trended.

  • INTERACTIVE MODE

    Once a route is created, the interactive mode will allow the user to make adjustments (add, delete, modify) to actions, triggers, camera views, and even control where the robot navigates.

  • AUTONOMOUS LIGHTING MODE

    Lighting can be automatically set to come on or stay off every single time or the user can let the software make the determination using a set point value to determine whether lighting should turn on or not.

  • AUTOMATED CAMERA CONTROLS

    Mission Explorer supports new hardware that will allow for remote operation and automation of several camera settings, such as focus and brightness.

  • TIME WAVEFORMS, SPECTRA, AND ORBITS

    Unlimited number of regions can be drawn in the video to measure displacement. All measurements are simultaneous.

  • STABILIZATION

    Entire frame and region based image stabilization.

  • DATA EXPORT

    Export waveform, spectra, orbits, and object paths to .csv file.

  • FREQUENCY FILTERING

    Bandpass, bandstop, lowpass, and highpass filtering of time waveform and video.

  • MOTION MAPS

    Show colorized image overlays of individual frequencies or overall motion.

  • TOP FREQUENCY FILTERING

    Automatically determine frequencies of interest and create multiple filtered data sets with a single click.

  • VIDEO ANNOTATIONS

    Add text, shape, annotations, and company logo overlays with export to video.

  • TRIGGERED EVENTS

    Virtual camera-based sensors, ROI triggers (waveform pk-pk, spectrum digital overall, spectrum frequency band), Manual Triggers.

  • VIDEO SIDE-BY-SIDE

    Side-by-side playback of original and Motion Amplification® video.

Specifications

  • INDUSTRIAL GRADE CAMERA

    USB 3.1, high-resolution CMOS sensor, high definition.

  • FREQUENCY RANGE

    0 CPM (0 Hz) to 5,400 CPM (90 Hz) at 180 fps.

  • SAMPLE RATE

    180 fps in HD, up to 1,300 fps at reduced resolution.

  • MOTION AMPLIFICATION® FACTOR

    1-500x.

  • MINIMUM DISPLACEMENT

    <0.01 mils (0.25 μm) at 3.3 ft (1m) with 50mm lens, 0.005 mils (0.125 μm) at close focus.

  • LENSES

    16mm Varioptic Lens.

  • ACQUISITION SYSTEM

    Server with Intel i7, 16GB Ram, 500GB storage, environmentally sealed design, wide temperature operating range, shock and vibration resistant, 1-Year warranty.

  • ANALYSIS DEVICE

    Ruggedized Tablet with Acquisition Software (Intel Core i7, 14" FHD outdoor viewable touch screen, 16GB RAM, 1TB SSD, stylus pen, chest, and hand straps, 1 YR Warranty).

DOWNLOAD SPECIFICATIONS

Download the list of specifications for Iris Explorer
