IRIS MATM

IRIS MATM

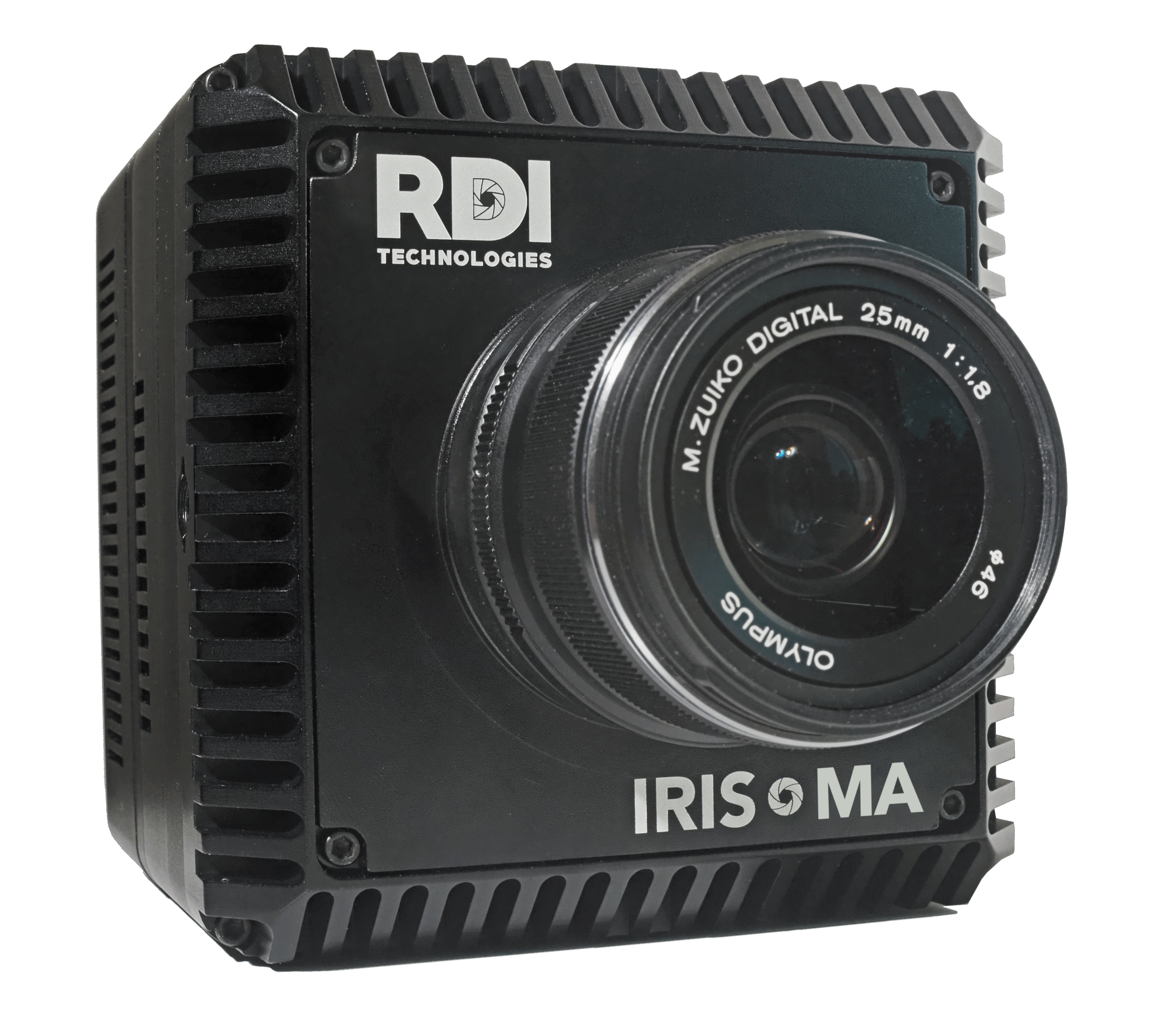

The Iris MA™ is the world’s first industrial camera with Live Motion Amplification®, giving you the power to see, measure and solve your toughest problems on the spot.

The power of the Lab. In the field for true insight.

Getting clean, reliable data in harsh industrial environments has always been a challenge that the Iris MA™ has been engineered to solve. This is not a consumer camera in a rugged box; it is a purpose-built data acquisition instrument designed from the ground up for industrial use. Its advanced sensor and optics capture the highest fidelity motion data, streaming it directly to a connected PC or display running our TrueSight™ analysis engine. This allows you to see Live Motion Amplification® in real-time, confident that the insights you’re seeing are built on the most accurate and reliable data possible, no matter the conditions.

Investing in new technology always comes with the risk of future obsolescence. We engineered the Iris aiOne™ and Iris MA™ camera to minimize that risk. It is designed as a single, powerful hardware platform that serves as a long-term foundation for your motion analysis program. The camera you purchase today is already equipped to handle the most demanding applications of tomorrow. Advanced capabilities, such as high-speed data acquisition, are enabled through our TrueSight™ software modules. This means your system grows with your needs through simple software upgrades and hardware additions, protecting your initial investment and ensuring you will have the tool you need now and in the future.

CONTACT FOR PRICING

SOFTWARE

https://rditechnologies.com/wp-content/uploads/2020/04/acquisition_promo_final.mp4
https://rditechnologies.com/wp-content/uploads/2020/04/motion-amplification-promo2-1.mp4
https://rditechnologies.com/wp-content/uploads/2020/04/Motion-Studio-Promo.mp4
https://rditechnologies.com/wp-content/uploads/2020/04/Motion-Explorer-Promo.mp4

Motion Amplification® Acquisition

RDI’s Motion Amplification® Acquisition Software’s user interface is as simple as point and click. This allows you to instantly visualize and measure movement at 2.3 million video-based sensor points.

Motion Amplification® Analysis

RDI’s Motion Amplification® Analysis Software makes complex asset analysis as simple as point and shoot. Each simple video taken in the acquisition software can now be used to extract time waveforms, spectra, and orbits or for complex processes like frequency based filtering, shaft inspection, and much more.

Motion Studio™

The new Motion Studio Update gives you the ability to create more powerful videos with RDI’s Motion Amplification® software. Add spectra and waveforms to your videos, show multiple views from a single screen, and edit your videos straight from video editor screen. Motion Studio gives you all the tools for your reports.

Motion Explorer™

All of this data needs somewhere to live in an organized and simple to access format. Motion Explorer is a comprehensive file management tool that keeps all your data organized, accessible, and ready for further analysis at any point in time.

videos straight from video editor screen. Motion Studio gives you all the tools for your reports.

Motion Amplification®

See motion invisible to the naked eye in near real-time view.

Up to 1400 FPS in Full HD Resolution

up to 29,000 fps at reduced resolution.

Group 9 Created with Sketch.

Displacement Measurements

<0.01 mils (0.25 μm) at 3.3 ft (1m) with 50mm lens, 0.005 mils (0.125 μm) at close focus.

VIDEO RESOURCES

https://rditechnologies.com/wp-content/uploads/2020/04/xylophone.mp4

Xylophone
https://rditechnologies.com/wp-content/uploads/2020/05/Wastewater-Blower.mp4

Blower
https://rditechnologies.com/wp-content/uploads/2020/05/Automotive-Drag-Car-Rear.mp4

Car Testing
VIEW MORE VIDEOS
https://rditechnologies.com/wp-content/uploads/2020/04/xylophone.mp4

Xylophone
https://rditechnologies.com/wp-content/uploads/2020/05/Wastewater-Blower.mp4

Blower
https://rditechnologies.com/wp-content/uploads/2020/05/Automotive-Drag-Car-Rear.mp4

Car Testing

IRIS aiOne™ KEY SOFTWARE FEATURES

  • LIVE MOTION AMPLIFICATION®

    Apply amplification before acquiring a recording. Scan assets instantly to see motion in real time.

  • TIME WAVEFORMS, SPECTRA, AND ORBITS

    Unlimited number of regions can be drawn in the video to measure displacement. All measurements are simultaneous.

  • STABILIZATION

    Entire frame and region based image stabilization.

  • DATA EXPORT

    Export waveform, spectra, orbits, and object paths to .csv file.

  • FREQUENCY FILTERING

    Bandpass, bandstop, lowpass, and highpass filtering of time waveform and video.

  • MOTION MAPS

    Show colorized image overlays of individual frequencies or overall motion.

  • TOP FREQUENCY FILTERING

    Automatically determine frequencies of interest and create multiple filtered data sets with a single click.

  • SHAFT INSPECTION

    Visually inspect rotating shafts and measure their displacement while under operation.

  • TRANSIENT MOTION AMPLIFICATION®

    See Motion Amplification® of small motions as an object moves through the scene.

  • TRANSIENT PATH PLOT

    Show the path of an object in the video as well as in the plot.

  • VIDEO ANNOTATIONS

    Add text, shape, annotations, and company logo overlays with export to video.

  • VIDEO SIDE-BY-SIDE

    Side-by-side playback of original and Motion Amplification® video.

IRIS MA™ SPECIFICATIONS

  • LENSES

    50mm f/0.95 Lens for Micro Four Thirds, 25mm f/0.95 Lens for Micro Four Thirds, 10.5mm f/0.95 Lens for Micro Four Thirds

  • MOTION AMPLIFICATION® FACTOR

    1-500x

  • THUNDERBOLT CABLE LENGTH

    9.84 ft (3m)

  • SAMPLE RATE

    1,400 fps in HD, up to 29,000 fps at reduced resolution.

  • MINIMUM DISPLACEMENT

    <0.01 mils (0.25 µm) at 3.3 ft (1m) with 50mm lens, 0.005 mils (0.125 µm) at close focus.

  • OPTIONAL ACCESSORY KIT

    LED light: 23,000 Lux @ 1 m, Li-ion light battery, light stand, extra vibration pads, computer stand.

  • FREQUENCY RANGE

    Up to 5,400 CPM @ 180 fps Maximum: 39,000 CPM at 1,300 fps with reduced resolution.

  • PLAYBACK/EXPORT SPEED

    4x original framerate to 1 fps.

  • AQUISITION SYSTEM

    i7 processor, 32GB RAM, 1TB SSD, dual batteries, lightweight, MIL-STD-810G standard drop protection, 1 yr accidental damage protection.

IRIS MA™ WITH TrueSight™ HIGHSPEED SPECIFICATIONS

  • LENSES

    50mm f/0.95 Lens for Micro Four Thirds, 25mm f/0.95 Lens for Micro Four Thirds, 10.5mm f/0.95 Lens for Micro Four Thirds

  • MOTION AMPLIFICATION® FACTOR

    1-500x

  • THUNDERBOLT CABLE LENGTH

    9.84 ft (3m)

  • SAMPLE RATE

    1,400 fps in HD, up to 29,000 fps at reduced resolution.

  • MINIMUM DISPLACEMENT

    <0.01 mils (0.25 µm) at 3.3 ft (1m) with 50mm lens, 0.005 mils (0.125 µm) at close focus.

  • OPTIONAL ACCESSORY KIT

    LED light: 23,000 Lux @ 1 m, Li-ion light battery, light stand, extra vibration pads, computer stand.

  • FREQUENCY RANGE

    Up to 42,000 CPM at 1,400 fps Maximum: 870,000 CPM at 29,000 fps with reduced resolution.

  • PLAYBACK/EXPORT SPEED

    4x original framerate to 1 fps.

  • AQUISITION SYSTEM

    i7 processor, 32GB RAM, 1TB SSD, dual batteries, lightweight, MIL-STD-810G standard drop protection, 1 yr accidental damage protection.

DOWNLOAD FULL SPECIFICATIONS

Download now for the complete list of features and specifications

DOWNLOAD NOW
